HW-IP4

SMOBBLE 4

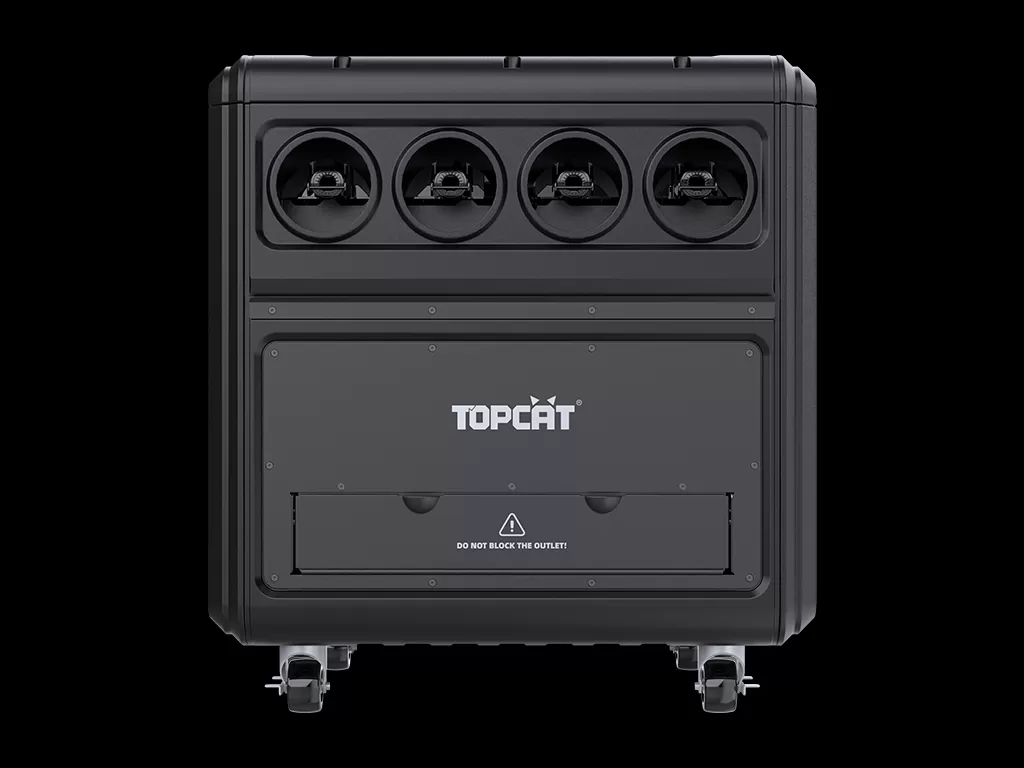

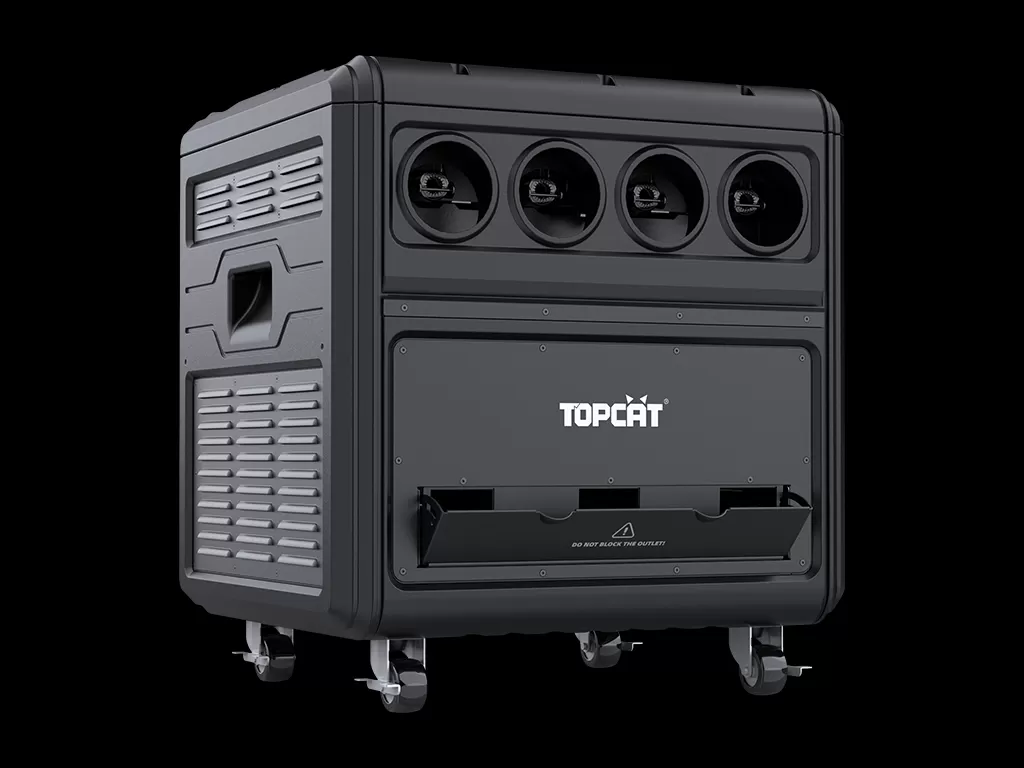

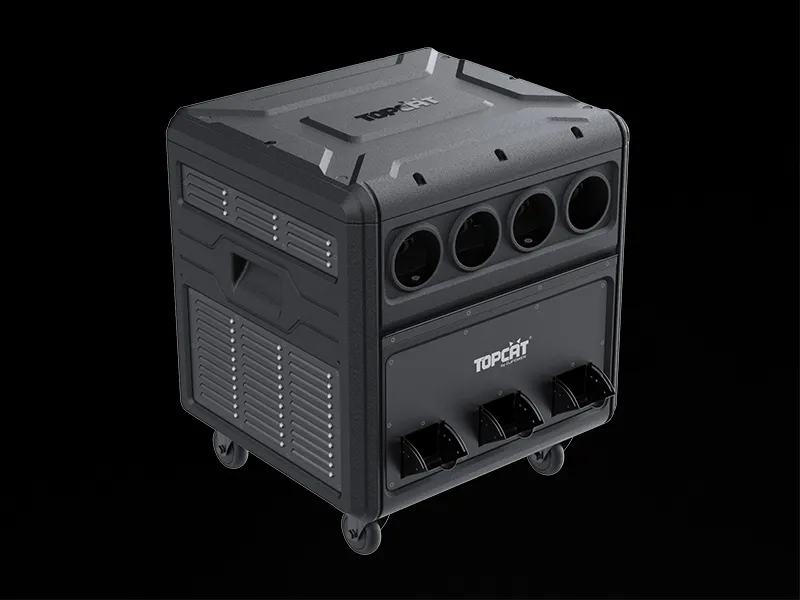

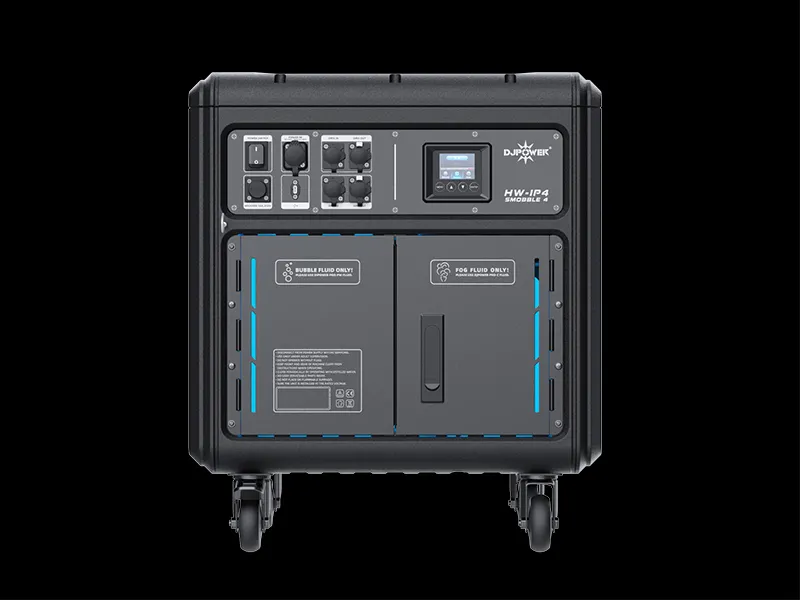

HW-IP4 is a newly high-end jet-design rainproof 4 -nozzle bubble fog machine launched by DJPOWER. The body is made of high-strength integrated composite materials, which is light weight, rust-free, corrosion-resistant, sturdy and durable. Water-conducting structure design, waterproof grade IP54, the machine is not affected by rain when working. The 4 -nozzle design can help produce huge amount of bubbles with fog filled inside. Innovative patented Jet -design ensures fog being trapped inside bubbles, avoids too much fog dispersing in the air. The height and distance of the bubble fog can be adjusted through changing the air outlet angle. Bubble fluid is well stored and sealed in the tank without going bad even after long time to ensure high quality show. Suitable for outdoor use.



Features

High-strength integrated composite material housing, water -conducting structure design; waterproof grade IP54; suitable for outdoor use;

Innovative Jet design, create denser and beautiful fog bubbles, greatly reducing the formation of excess smoke;

Well -designed heating system releases the fog evenly and purely, no fluid dropping off;

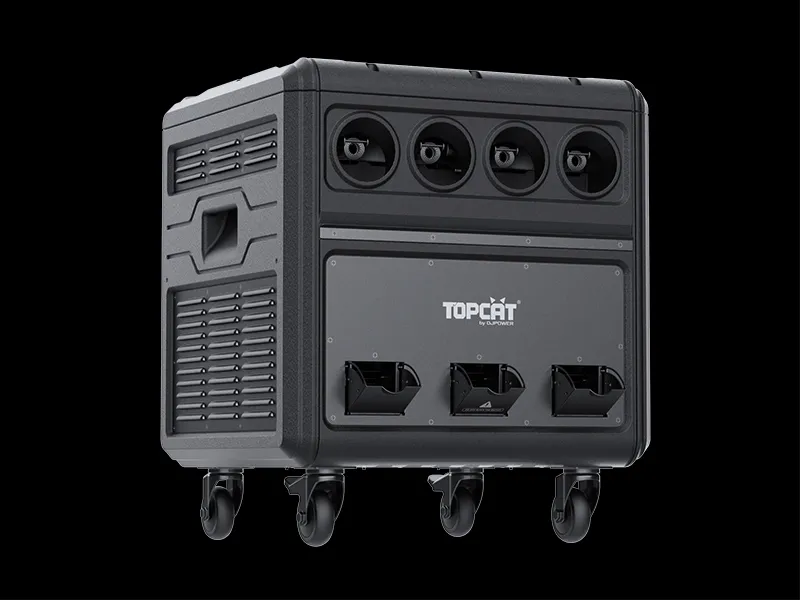

Three fans with adjustable angles make the fog bubble fly higher, further;

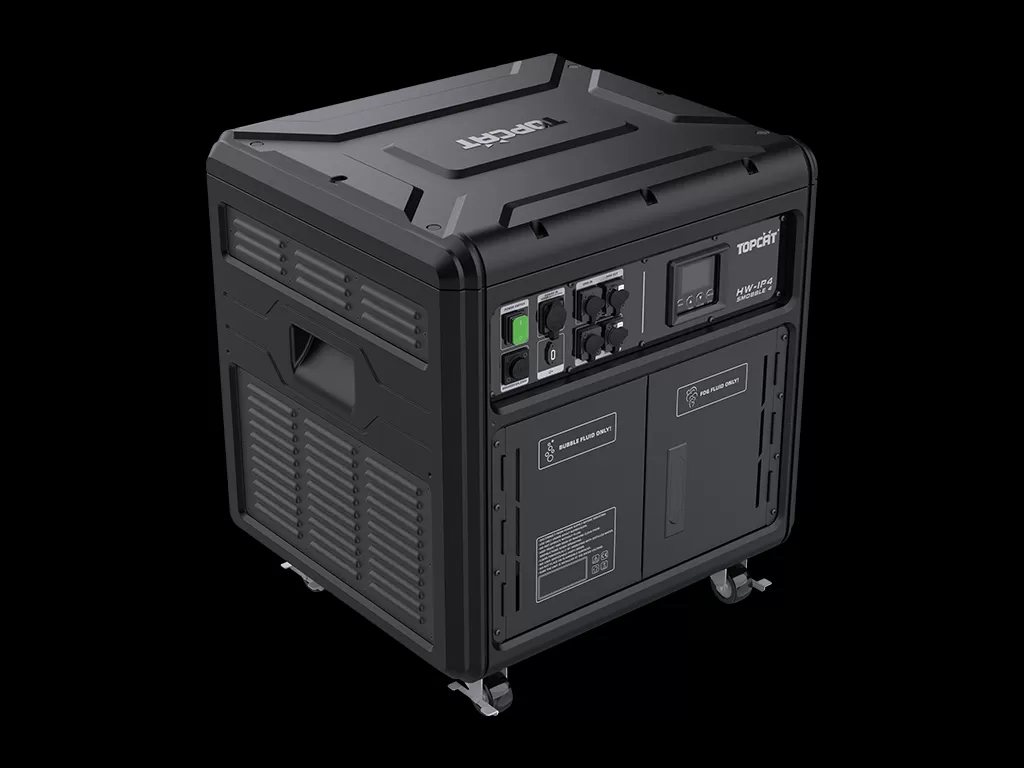

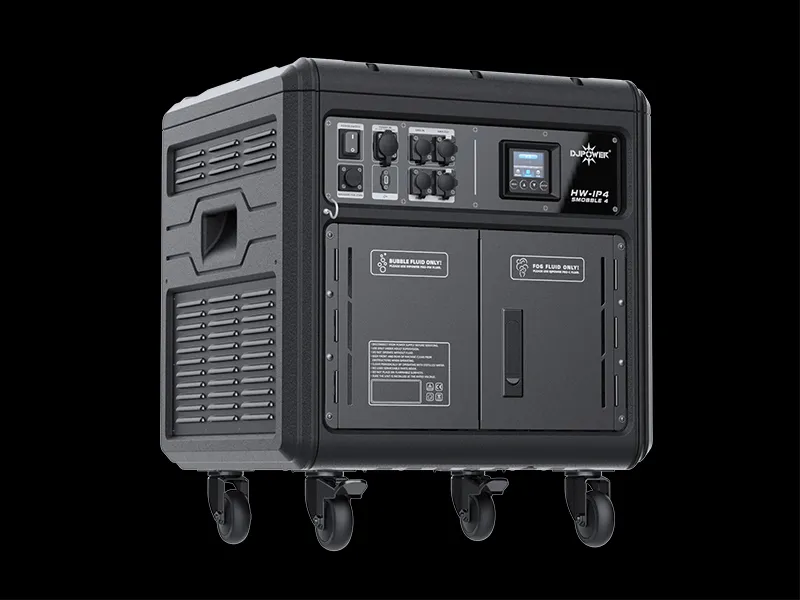

LCD color screen, easy to use.

Please use DJPOWER special bubble fluid PRO-PW and fog fluid PRO-C.


Note: The actual effect may be affected by the using environment.







Specifications
AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Breaker

Current Limiter Specifications: 10A, 250 V

Total Power Consumption:1600 W


HEATING

Heat Up Time: Appr. 3.5 min


WATERPROOF

Waterproof Grade:IP54

CAPACITY

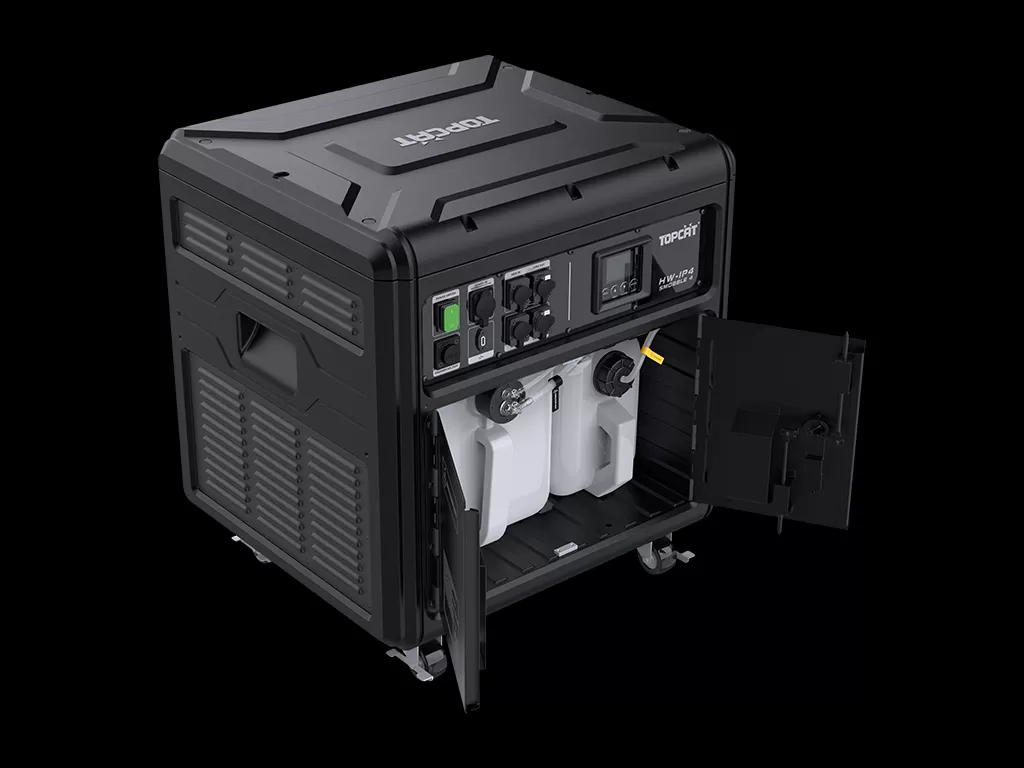

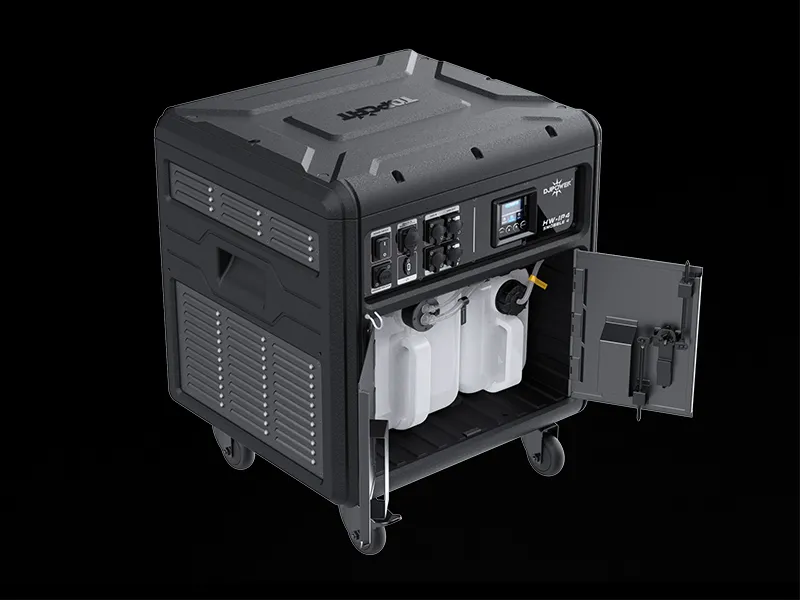

Bubble Fluid Tank Capacity:9L

Fog Fluid Tank Capacity:5L


OUTPUT

Adjustable Output:

Max Fog Output Volume:Appr. 6,000 cuft/min

Max Output Height:Appr. 10 m

Max Output Distance:Appr. 10 m

Fog Fluid Consumption (100% Output) :Appr. 90.9 min/L

Bubble Fluid consumption (100% Output) :Appr. 12.5 min/L







CONTROL

On -device Manual Control Color:screen LCD control panel

Wireless Control:×

Wired Control:×

Control Protocol:DMX512

DMX Channel Range:4




CONSUMABLE

Consumable: PRO-PW & PRO-C & PRO-J

WEIGHT & DIMENSIONS

Net Weight: 34 kg

Gross Weight: 37.5kg

Machine Dimensions: 540 × 490 × 598mm

Packing Dimensions: 642 × 594 × 690mm
