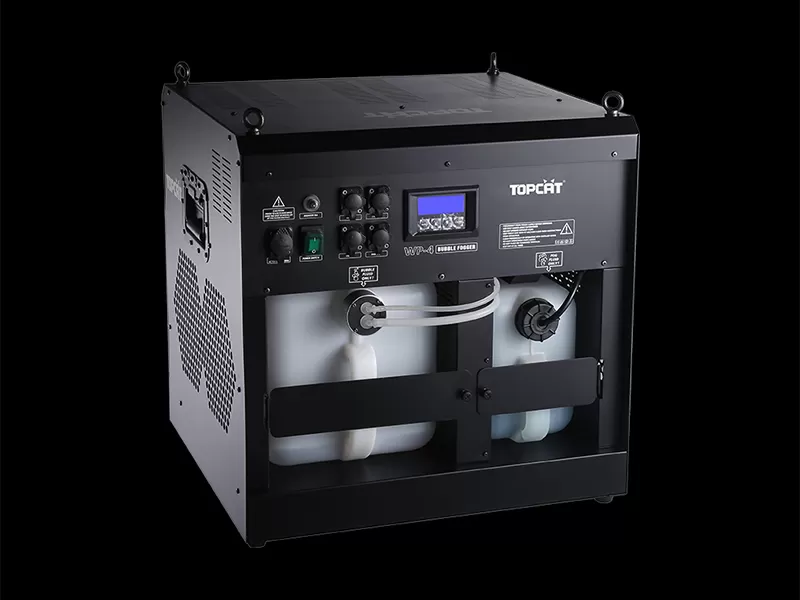

TOPCAT WP-4 is a newly launched professional bubble fog machine for big stages and event halls. The 4-nozzle design can help produce huge amount of bubbles with fog filled inside. Innovative patented Jet-design ensures fog being trapped inside bubbles, avoids too much fog dispersing in the air. The height and distance of the bubble fog can be adjusted through changing the air outlet angle. Bubble fluid is well stored and sealed in the tank without going bad even after long time to ensure high quality show.
Innovative Jet design, create massive amount of fog filled bubbles;
Well-designed heating system releases the fog evenly and purely, no fluid dropping off;
Three fans with adjustable angles make the fog bubble fly higher, further;
Built-in LCD control, 3-pin and 5-pin DMX control, easy to use;
Big size fluid tanks, long running time on full output.
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 8 A, 250 V
Total Power Consumption:1600 W
Power Input Connector: Lockable PowerCon
Power Output Connector (Daisy Chained): Lockable PowerCon
Heat Up Time: Appr. 3.5 min
Heater Type: Aluminum Heater Block
Haze Fluid Tank Capacity: 5 L
Bubble Fluid Tank Capacity: 9 L
Adjustable Volume: √
Max Output Volume: Appr. 6,000 cuft/min
Max Output Height: Appr. 10 m
Max Output Distance: Appr. 10 m
Haze Fluid Consumption Rate: Appr. 90.9 min/L
Bubble Fluid Consumption Rate: Appr. 12.5 min/L
Physical Thermostat: ×
Electronic Thermo-Control: √
Adjustable Output : √
Adjustable Fan Speed: √
No-Fluid Protection: ×
On-device Manual Control : LCD control board
Wireless Control: ×
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 4
Data Connectors: 3-pin and 5-pin XLR
Power Cord: √
Wireless Controller Model: ×
Consumable: PRO-PW & PRO-C & PRO-J
Net Weight: 40 kg
Gross Weight: 51.4 kg
Machine Dimensions: 532 × 469 × 556 mm
Packing Dimensions: 730 × 590 × 640 mm
