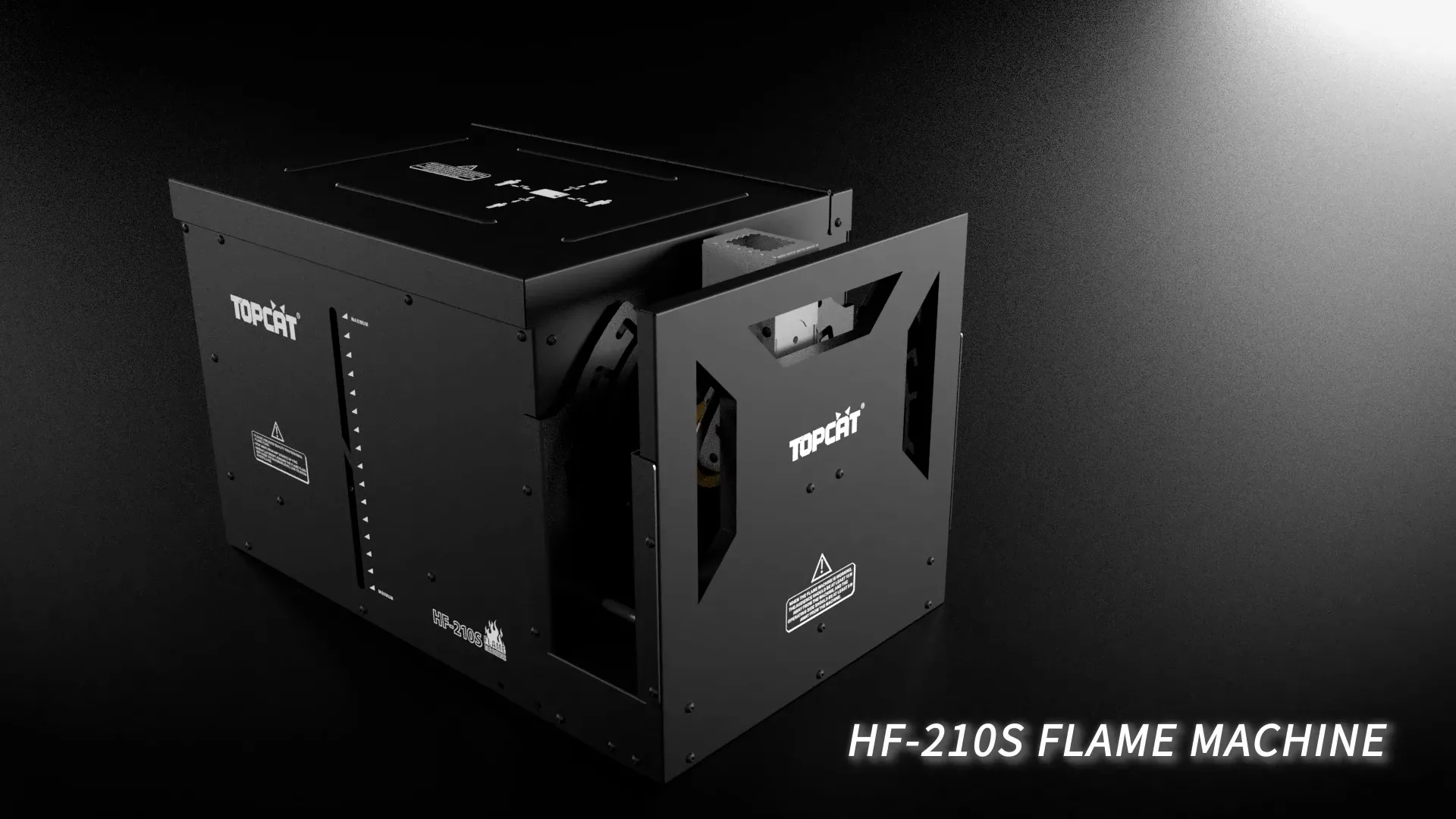

HF-210S is DJPOWER's newly upgraded wave flame machine. It is equipped with dual ignition and rainproof structure design. With a maximum rotation angle of 210° and flame effect reaches up to 8m. The dual valve and dual pump design is safe and reliable. It is preset with 85 sequences of flame effects, for which can be controlled by DMX to get fire-breathing effects, such as multi-angles burst, left and right burst, swing flame etc. It is suitable for all kinds of shows to create excellent atmosphere.
Dual ignition ensures successful ignition;
Rainproof structure design, IPX3 waterproof grade;
The dual valve and dual pump design , safer and more stable;
The maximum rotation angle is optional: ground mode: 180° (±90°) or suspended (5 meters and above) mode: 210° (±105°);
Fast and precise flame burst;
With tilt sensor design, output is auto off when tilts to 45°in any direction;
Unique safety lock to avoid false triggering;
Thicken and anti-rust metal structure, durable in use;
Intelligent electronic control system (Pressure & no-fluid monitoring; Safety & Failure warning) ;
Built-in LCD control, 3-pin and 5-pin DMX control;
Full set of SEETRONIC rainproof power connectors;
With battery interface, support external 12V battery supply.
Note: The actual effect may be affected by the use environment.
In order to protect the oil pump and pipeline, 10-20ML castor oil must be added to every 10L of fuel, otherwise the oil pump and components will be damaged)
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 5 A, 250 V
Total Power Consumption: 6,00 W
Power Input Connector: Lockable PowerCon
Fluid Tank Capacity: 10 L
Adjustable Output Angle: √
Max Output Height: Appr.8 m-10 m (no wind)
Effect angles: ground mode: 180°(±90°)；suspended (5 meters and above) mode: 210° (±105°)
Fluid Consumption Rate: Appr. 0.48 min/L
Consumable: Isopropyl alcohol, Bio-Ethanol, Isopar-G
Physical Thermostat: ×
Electronic Thermo-Control: ×
Adjustable Output : ×
No-fluid Monitoring: √
Safety Warning: √
Failure Warning: √
On-device Manual Control : LCD control board
Wireless Control: ×
Wired Control: √
Control Protocol: DMX-512
DMX Channel Range: 6
Data Connectors: 3- and 5-pin XLR
Power Cord: √
Wireless Controller Model: ×
Consumables: Isopar-G (or isopropyl alcohol, bio-ethanol, please consult a sales representative for this type of consumables)
Net Weight: 36 kg
Gross Weight: 48.4 kg
Machine Dimensions: 587.6 × 362.4 × 371 mm
Flight case Dimensions: 645 × 405 × 504 mm
Packing Dimensions: 720 × 480 × 570 mm
