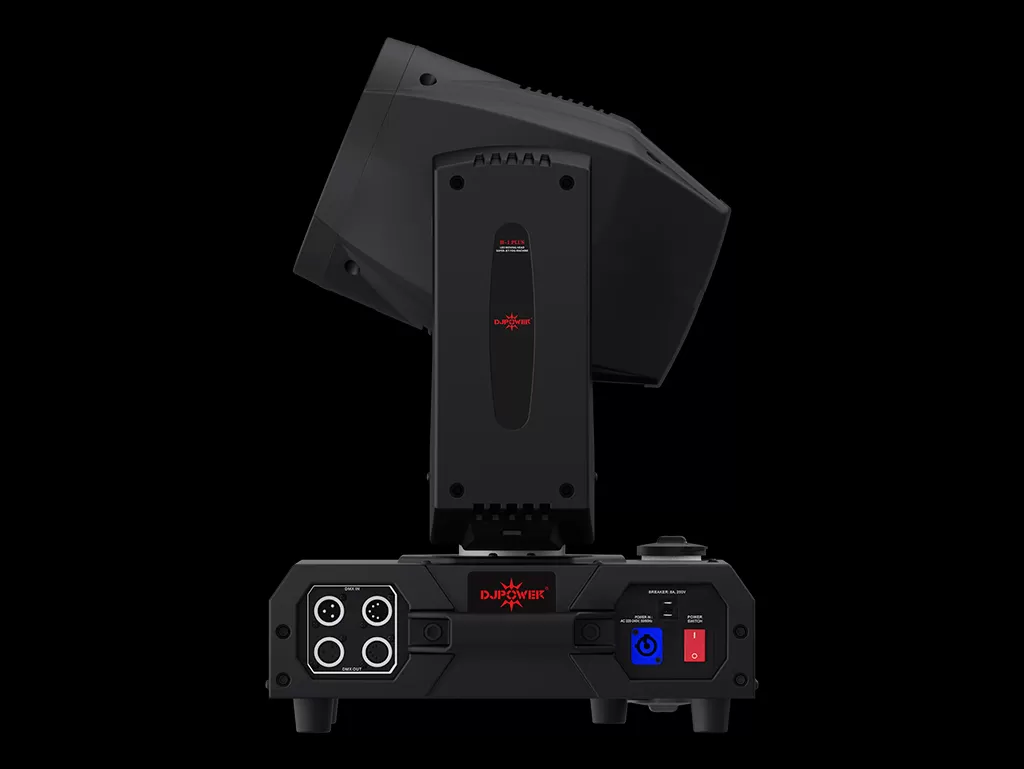

H-1 PLUS is an upgraded version of DJPOWER LED moving head fog machine. The patented technology of super jet, the response speed of smoke spray is faster. 24PCS 5W RGBA LED lights. At the same time, the size of heater is bigger. So that the fog output is stronger and the color is brighter. which can achieve 360°smoking effect. The moving head fog machine has the patented technology of super jet (patent number: ZL201520934500.2) and Immediate-Stop and Anti-Squirting Plus patented technology (patent number: ZL201320700998.7).
Super-jet function Longer output distance；
Immediate-Stop and Anti-Squirting Plus patented technology；
24PCS 5W RGBA LED lights；
The size of heater is bigger.o that the fog output is stronger and the color is brighter；
Upgraded structure, more safer and convenient；
Built-in LCD control, DMX512 control；
360° moving head rotation, hung or place on floor；
Please use DJPOWER professional fog fluid PRO-A or PRO-V.
In addition, the moving head smoke machine is equipped with a new and small controller box, which can be bought separately. The controller box enables the machine work automatically without DMX console! Such as when four machines daisy chained, the smoke jet machines can work the programs you choose from the control box automatically.
Note: The actual effect may be affected by the using environment.
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 8 A, 250 V
Total Power Consumption: 1,500 W
Power Input Connector: Lockable Power Con
Heat Up Time: Appr. 9.5 min
Heater Type: Aluminum Heater Block
LED Color: RGBA
LED Type: Single Color
Power per LED: 5 W
Quantity of LED: 24 pcs
Quantity of RED: 6 pcs
Quantity of GREEN: 6 pcs
Quantity of BLUE: 6 pcs
Quantity of AMBER: 6 pcs
Total Power of LED: 120 W
Fluid Tank Capacity: 1.3 L / 0.3 Gal.
Max Output Volume: Appr. 29,000 cuft/min
Max Output Distance: Appr. 6.0~8.0 m
Fluid Consumption @ full volume : Appr. 6.8 min/L
Maximum Continuous Duration @ full volume: Appr. 6 sec
Consumable Type for Standard Output Test: PRO-V
Physical Thermostat: √
Electronic Thermo-Control: √
Adjustable Output : √
No-Fluid Protection: √
Instant-Stop: √
On-device Manual Control: LCD control board
Wireless Control: W-4 / RF 433MHz / Built-in
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 10
Data Connectors: 3- and 5-pin XLR
Power Cord: √
Wireless Controller Model: W-4 / RF 433MHz / Transmitter
Consumable: PRO-A or PRO-V Fog Fluid
Net Weight: 23.6 kg
Gross Weight: 26 kg
Machine Dimensions: 453 × 355 × 511.1 mm
Packing Dimensions: 523 × 449 × 555 mm
