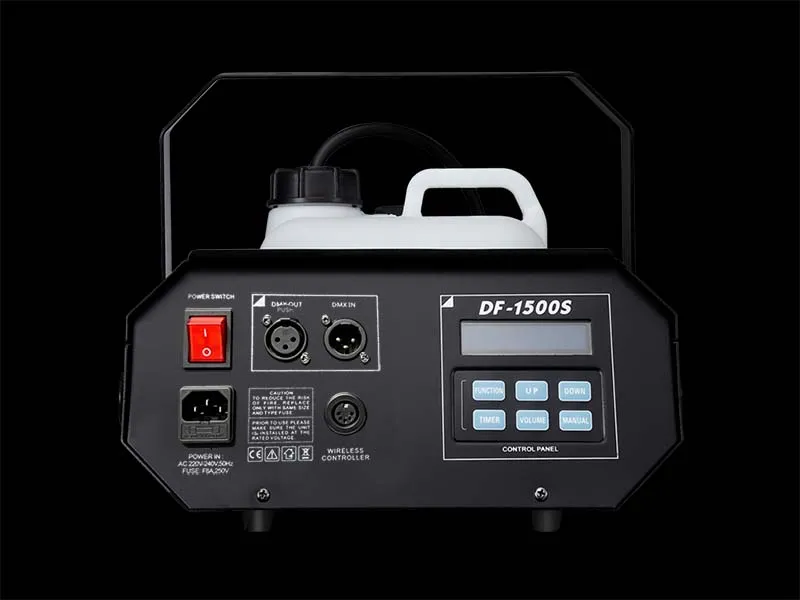

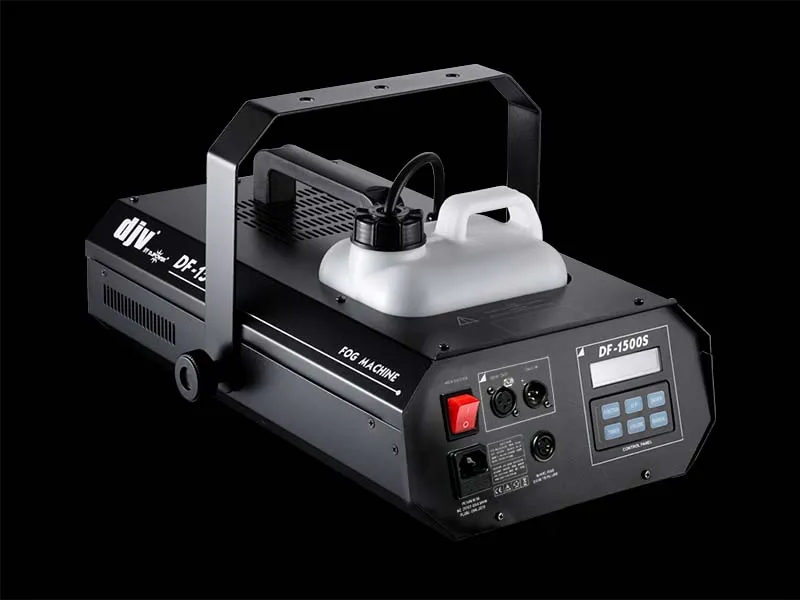

DF-1500S

FOG MACHINE

This model is with high cost performance!Convenient and safe for use.

DF-1500S



Features

Stable performance and fog output;

Equipped with electronic temperature control system, high-accuracy temperature control PCB and new professional atomizer;

Easy set timing and quantitative work;

3-pin DMX512 input/output socket;

No-fluid protection for safety use;

Built-in LCD control and wireless control. Remote controller is convenient for group use, several units used together can be selectable control;

Please use DJPOWER professional fog fluid DJV-001 or D-01.




Specifications
AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Breaker

Current Limiter Specifications: 8 A, 250 V

Total Power Consumption: 1,350 W

Operating Current: 5.9 A

Power Input Connector: Hard-wired

HEATING

Heat Up Time: Appr. 5.0 min

Heater Type: Aluminum Heater Block

CAPACITY

Fluid Tank Capacity : 3 L

OUTPUT

Adjustable Volume: √

Volume Adjustment Level/Range: 1-100%

Max Output Volume: Appr. 30,000 cuft/min

Max Output Distance : Appr. 6 m

Fluid Consumption @ full volume : Appr. 6.7 min/L

Maximum Continuous Duration @ full volume: Appr. 15 sec

Continuous Output : ×

Max Continuous Output Level: 100%

Fully-loaded Cumulative Output Duration @ full volume: Appr. 20 min

FEATURES

Physical Thermostat: √

Electronic Thermo-Control: √

No-Fluid Protection: √

Instant-Stop: ×

CONTROL

On-device Manual Control : LCD control board

Wireless Control: W-2 / RF 315MHz / External receiver

Control Protocol: DMX-512

DMX Channel Range: 1

Data Connectors: 3-pin XLR

ACCESSORY

Power Cord: √

Wireless Controller Model: W-2 / RF 315MHz / Transmitter & Receiver

CONSUMABLE

Consumable: DJV-001 or D-01 or D-03 Fog Fluid

WEIGHT & DIMENSIONS

Net Weight: 8.6 kg

Gross Weight: 9.4 kg

Machine Dimensions: 478 × 346 × 233.5 mm

Packing Dimensions: 525 × 355 × 290 mm
