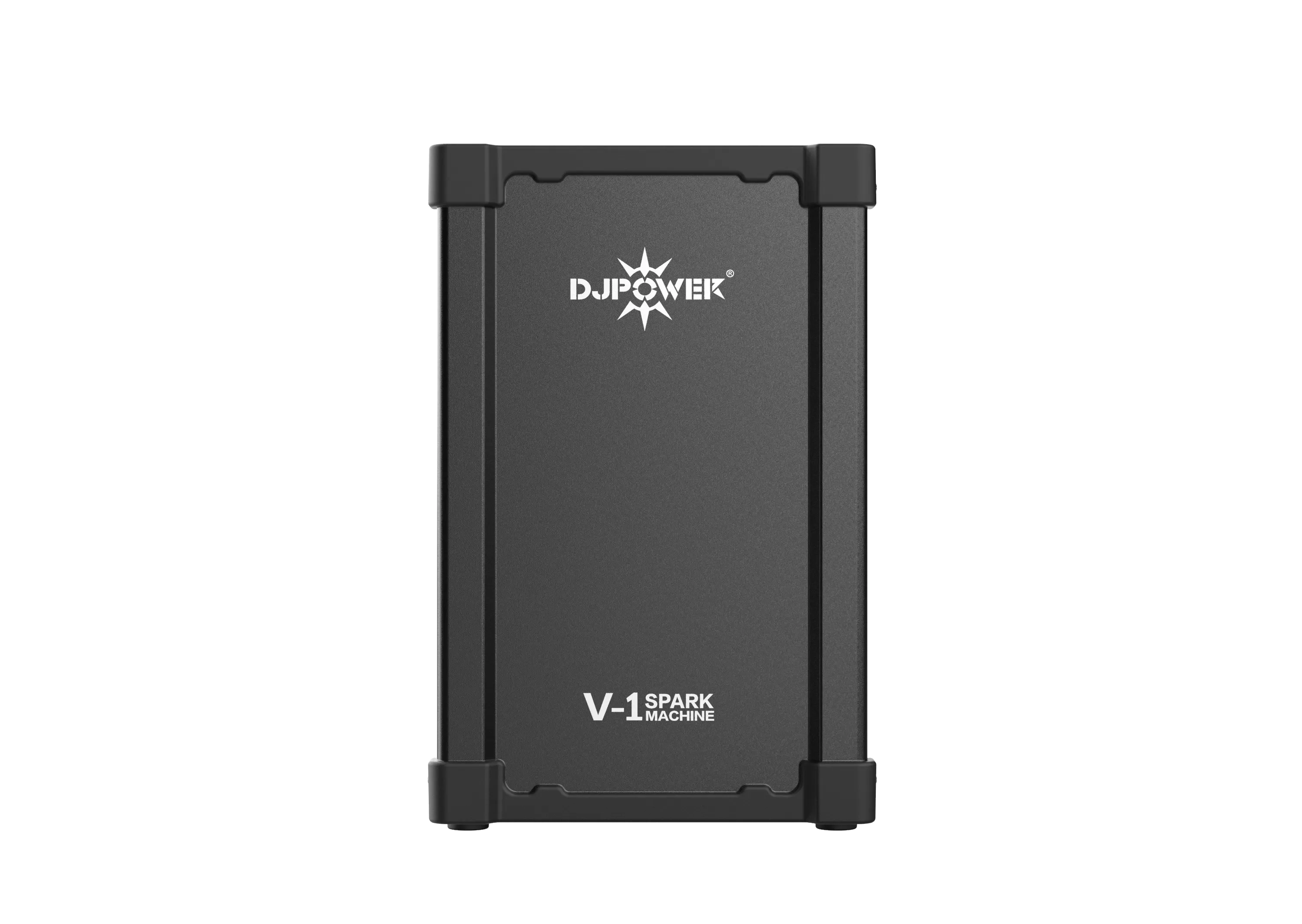

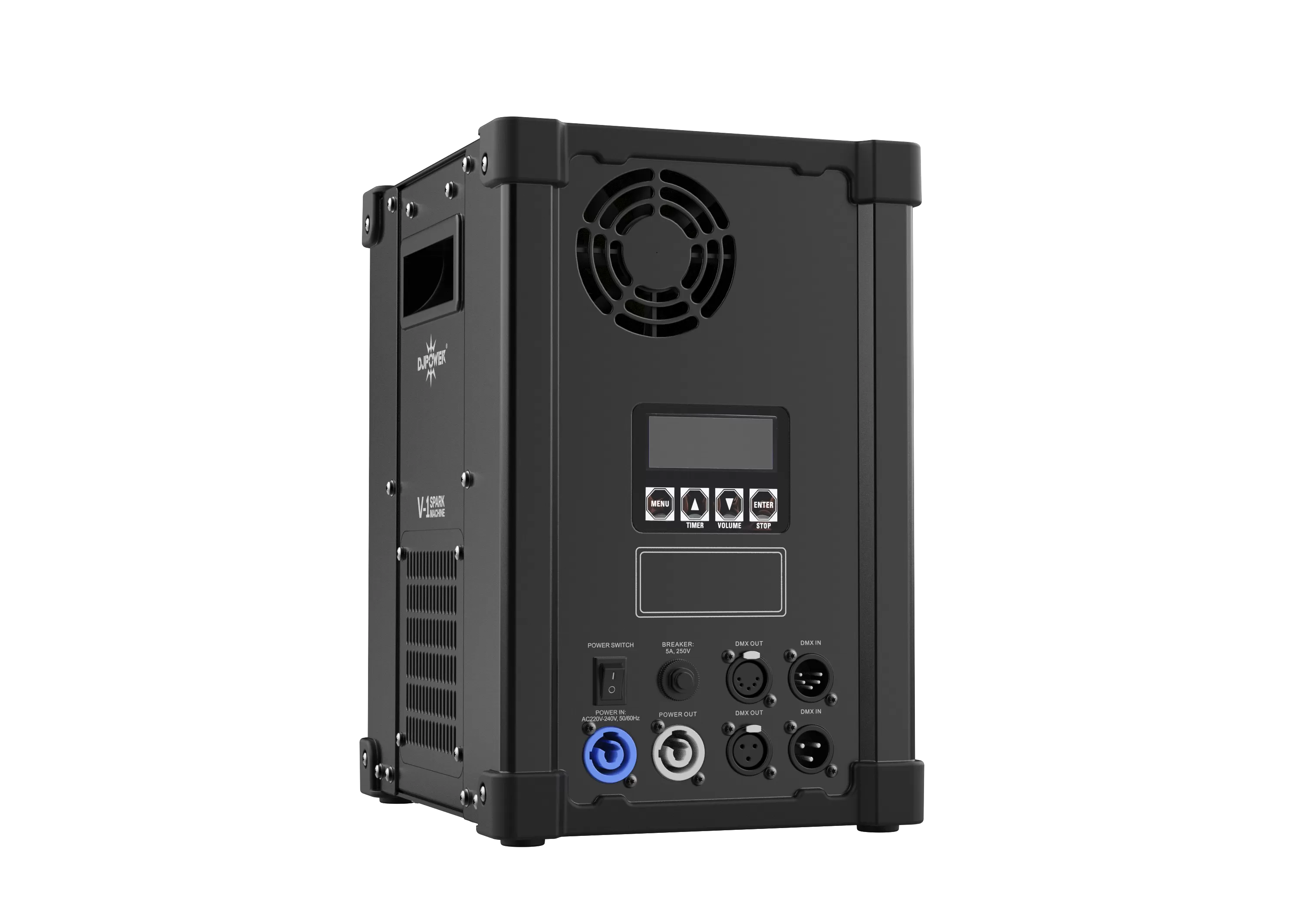

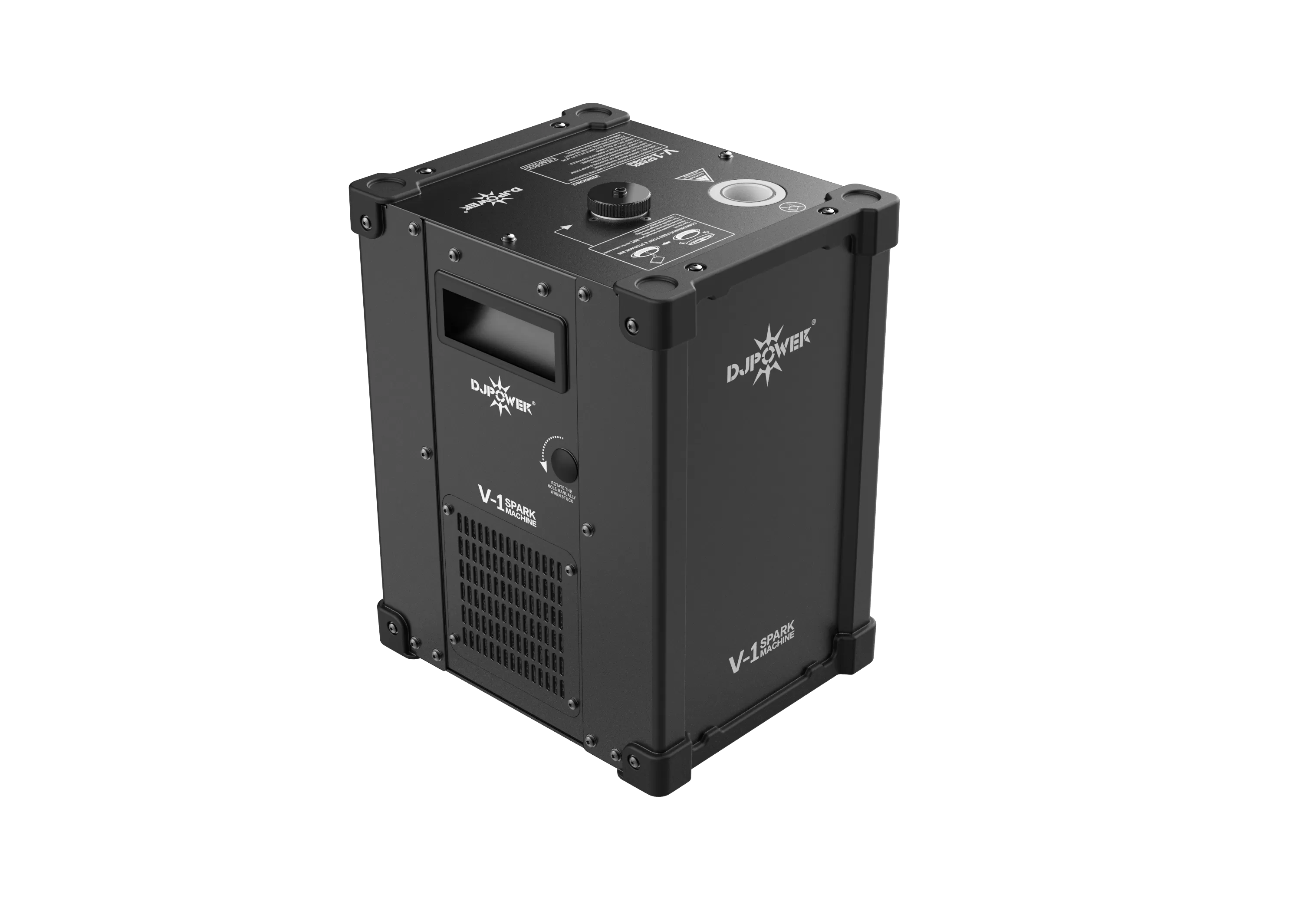

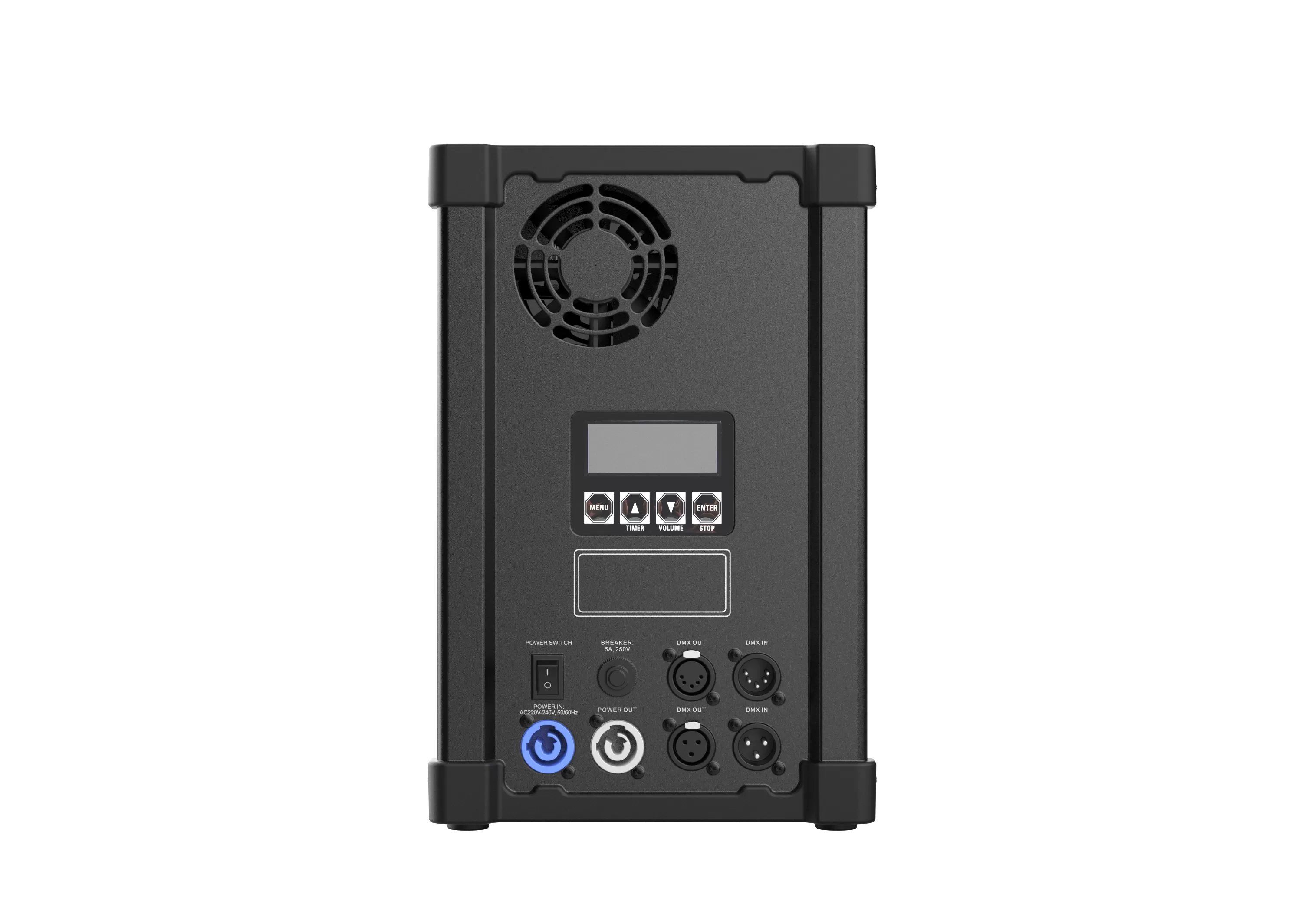

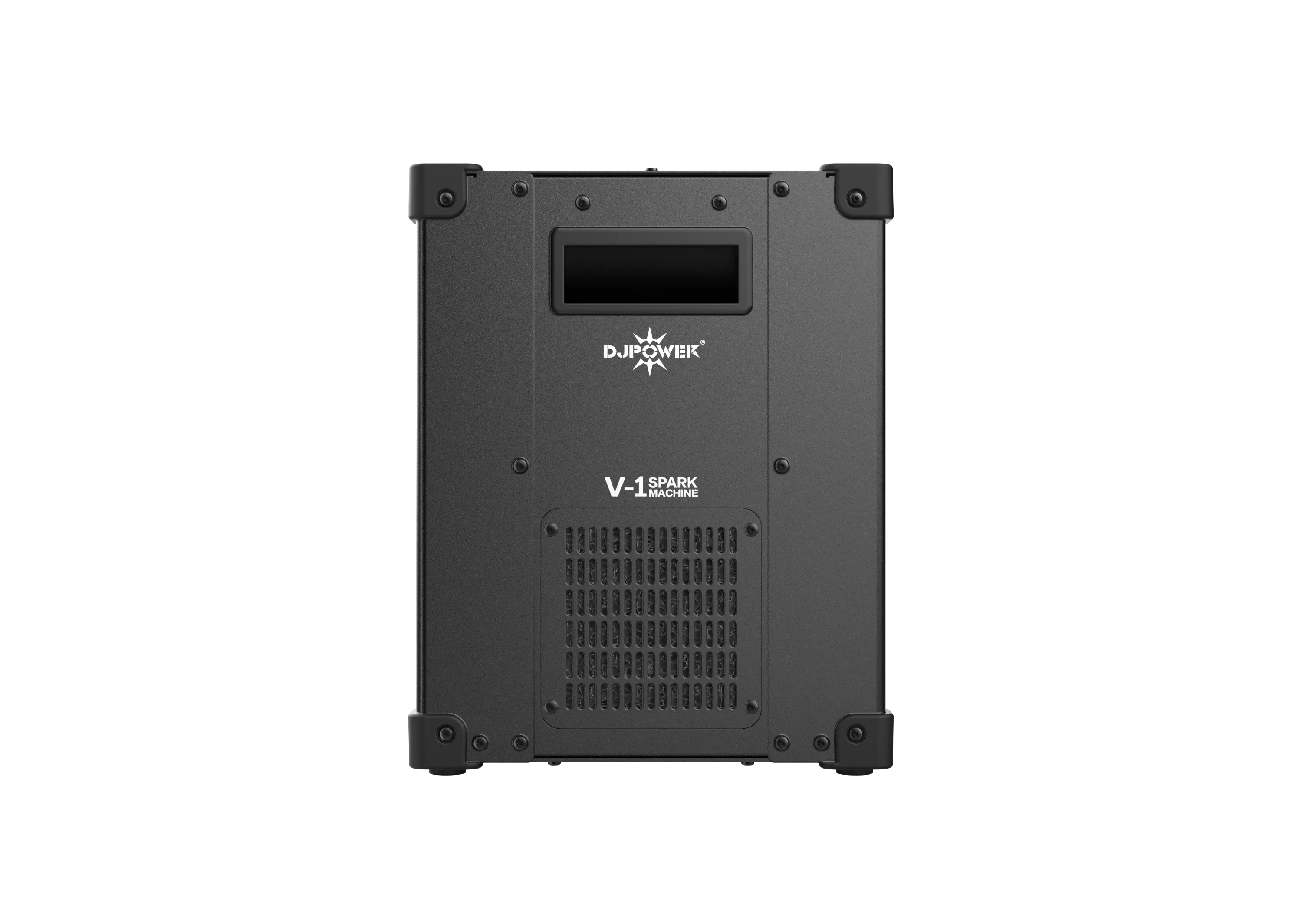

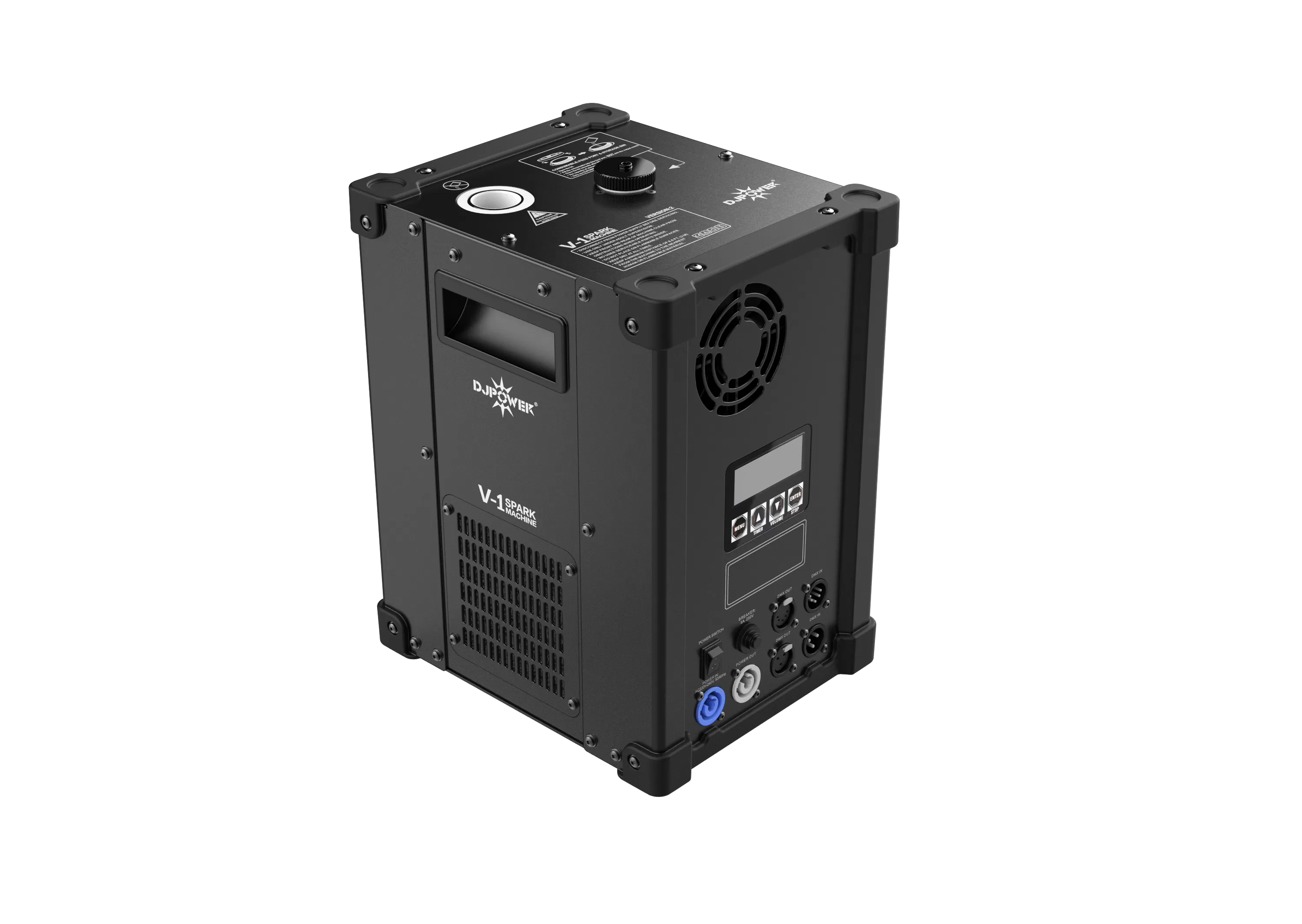

V-1

SPARK MACHINE

The Spark machine produces a fantastic, non-hazardous effect that looks like traditional fireworks or pyrotechnics, adopting brand-new control system and standard DMX Control to realize multiple stage special effects.It thoroughly changed the drawbacks on traditional cold fireworks such as danger caused by gunpowder, environmental pollution, restricted for use etc.The duration and height of the effect can be varied throughout a display, with sequences of 'dancing' sparks created to entertain audiences.

(Hereby declare that the spark machine series products produced by DJPOWER (Guangzhou DJPOWER Electronic Technology Co., Ltd.), models: V-1, V-2, V-3, V-4, V-5, V-6, do not involve any patent infringement issues.)

V-1



Features

Safety, without gunpowder; Much safer than using traditional pyrotechnics;

No hazardous materials; Can be used indoor;

Environmental friendly, no smoke and odor;

Intelligent and digitalized; Recyclable with low consumption;

Easy operation and user friendly;

Up to 15 minutes of effect can be produced from just one-time powder refill;

Adjustable output height up to 5 meters.




Specifications
AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Breaker

Current Limiter Specifications: 5 A, 250 V

Total Power Consumption: 700 W

Operating Current: 3.0 A

Power Input Connector: Lockable PowerCon

Power Output Connector (Daisy Chained): Lockable PowerCon

HEATING

Heat Up Time: <3 min

FAN

Type: Blower

Quantity: 1 pc

Input Voltage: 12 V

Current: 0.20 A

Power Consumption of Each Unit: 200 W

Total Power Consumption: 200 W

Output Adjustable: √

Adjustment Range: Level 1-10

CAPACITY

Powder Tank Capacity: 200 g

OUTPUT

Adjustable Volume: √

Volume Adjustment Level/Range: Level 1-10

Max Output Height: Appr. 4~5 m

Powder Consumption @ full volume: Appr. 14.0 g/min

Maximum Continuous Duration @ full volume: Appr. 30 sec

Continuous Output: ×

Max Continuous Output Level: Level 10

Fully-loaded Cumulative Output Duration @ full volume: Appr. 14 min

FEATURES

Physical Thermostat: ×

Electronic Thermo-Control: √

Adjustable Output: √

Adjustable Fan Speed: √

Operation Noise: Appr. 1 m, 80 dB

CONTROL

On-device Manual Control: LCD control board

Wireless Control: ×

Wired Control: ×

Control Protocol: DMX-512

DMX Channel Range: 2

Data Connectors: 3-pin and 5-pin XLR

RFID Card: √

ACCESSORY

Power Cord: √

Wireless Controller Model: ×

CONSUMABLE

Consumable: Spark Seed PRO-K

WEIGHT & DIMENSIONS

Net Weight: 10 kg

Gross Weight: 11.4 kg

Machine Dimensions: 205.7 × 250.2 × 323 mm

Packing Dimensions: 290 × 335 × 415 mm
