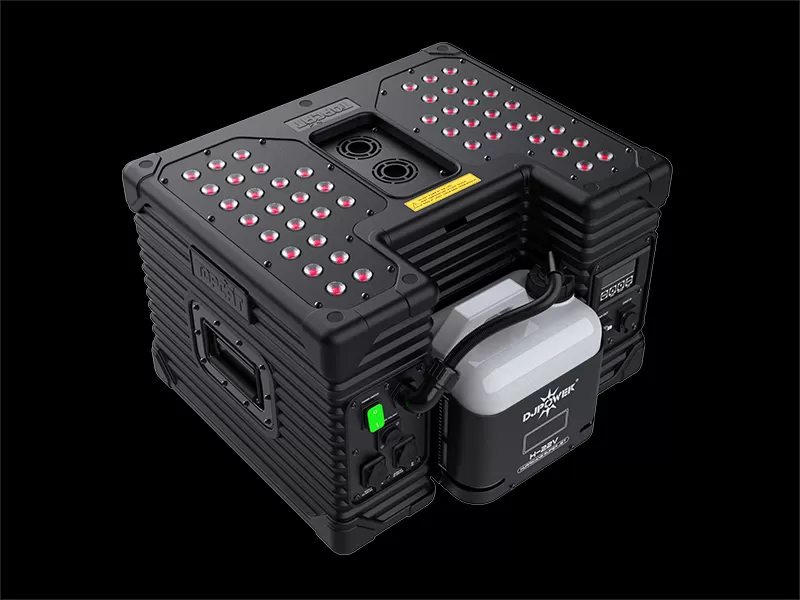

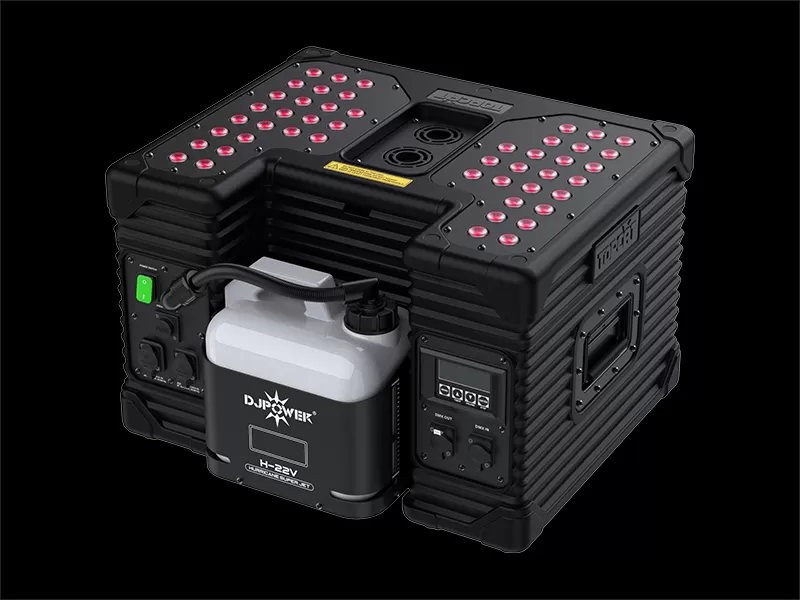

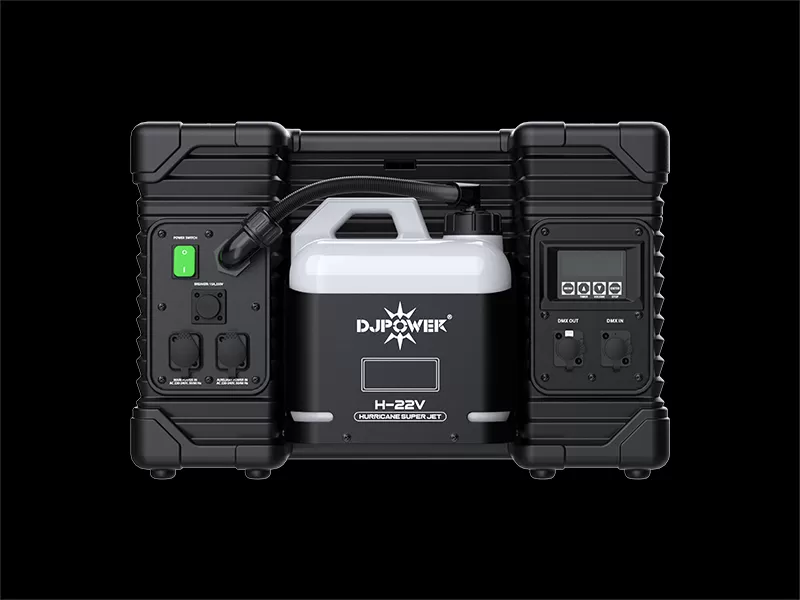

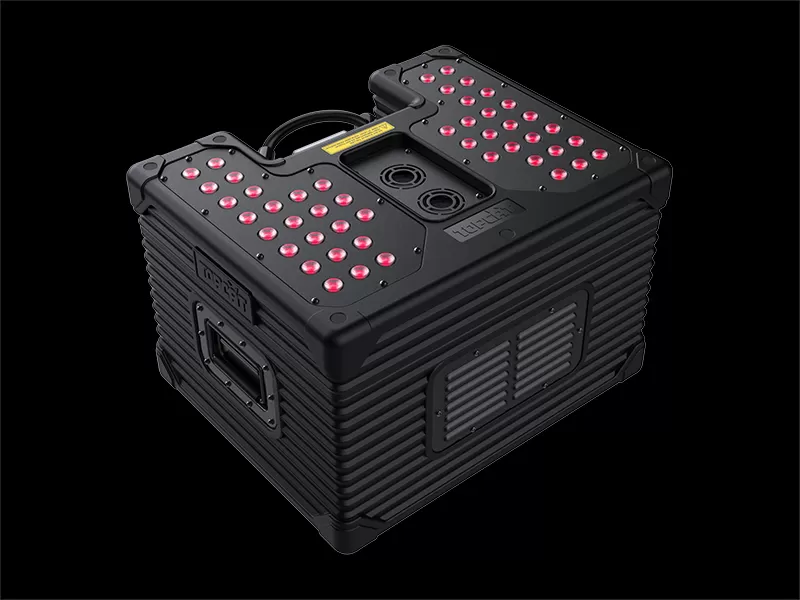

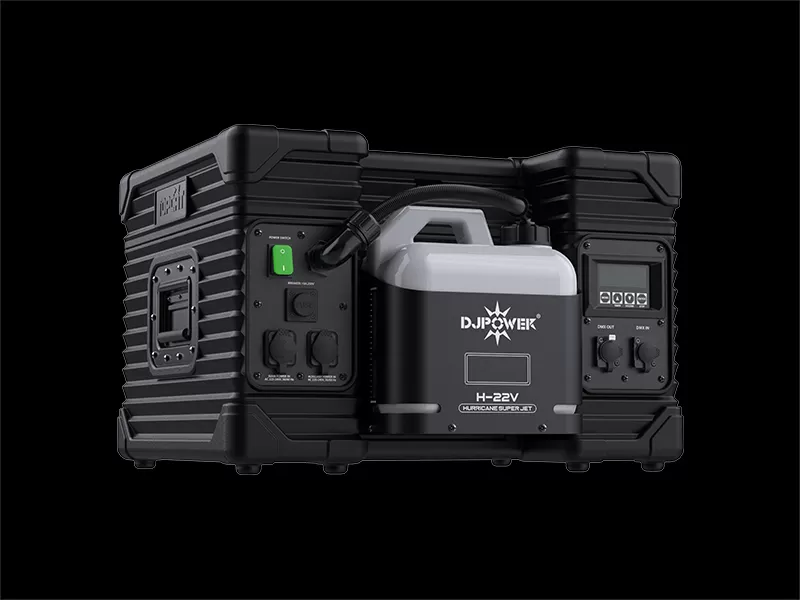

H-22V

HURRICANE SUPER JET

H-22V high power fog machine is a new rainproof high-speed dual nozzle super jet launched by DJPOWER. It is specially designed for outdoor use and powerful fog output up to 20 meters. With "Super-Jet" (Patent number: ZL 201520934500.2) and “Immediate-stop” (Patent number: ZL 201320700998.7) patent technology, the output speed and strength can be comparable with CO2 jet. The housing is made of high-strength integrated composite materials, which is rust-free, strong and durable. The IP grade is IP53. The vertical fog machine is suitable for outdoor performances, big bars, cultural tourism projects and other activities.

H-22V



Features

1. Unmatched Fog Output & Speed

Super-Jet Technology (Patent ZL 201520934500.2): Dual nozzles propel fog at 276,000 cuft/min, creating towering 20-meter columns for stadiums and outdoor venues.

Immediate-Stop Control (Patent ZL 201320700998.7): Instantly halts fog output to eliminate spillage, enabling precise synchronization with music or lighting cues.

2. Rugged, Weather-Resistant Design

IP53 Rainproof Rating: Operates flawlessly in rain or humidity, ideal for outdoor festivals and adventure parks.

High-Strength Composite Housing: Rust-free, impact-resistant construction ensures longevity in harsh environments.

3. Dynamic Visual Enhancements

48 RGB LEDs (6W Each): Projects vibrant, color-shifting fog columns, synchronized with DMX512/RDM controls for immersive light-fog synergy.

LCD Control Panel: Intuitive interface for adjusting output intensity, LED colors, and timer settings.

4. Advanced Safety & Reliability

No-Fluid Protection: Automatically shuts down to prevent pump damage when fluid is low.

Anti-Loose Power Plug: Secure connectors eliminate accidental disconnections during high-energy performances.

5. Professional-Grade Control

DMX512/RDM Compatibility: Seamless integration with lighting consoles for synchronized stage effects (9-channel control).

PRO-V Fluid Optimization: Engineered for rapid dissipation, leaving no residue on stages or equipment.

Note: The actual effect may be affected by the usage environment.


High Power Fog Machine Applications

Live Events: Stadium concerts, EDM festivals, and theatrical productions.

Cultural Tourism: Theme park spectacles, immersive historical reenactments, and light shows.

Nightlife: Mega-clubs, rooftop bars, and laser-fueled dance floors.

Outdoor Installations: Fire simulations, haunted attractions, and outdoor cinema.




Specifications
AC POWER

Input Voltage & Rate: AC 220-240 V, 50/60 Hz

Total Power Consumption:3,500 W

HEATING

First heat-up time:Appr. 25 min

LIGHT SOURCE

Power per LED:6 W

Quantity of LED: 48 pcs

LED Color: RGB

OUTPUT

Max Output Volume: Appr. 276,000 cuft/min

Max Output Height: Appr. 20 m

Fluid Consumption @ full volume : Appr. 0.72 min/L

Maximum Continuous Duration @ full volume: Appr. 7 s

CONTROL

On-device Manual Control : LCD control board

Control Protocol: DMX512/RDM

DMX Channel Range: 9

CAPACITY

Fluid Tank Capacity: 5 L

Fully-loaded Cumulative Output Duration @ full volume: Appr. 3.6 min

CONSUMABLE

Consumable: PRO-V

WEIGHT & DIMENSIONS

Net Weight: 46.5 kg

Gross Weight: 54.8 kg

Machine Dimensions: 520 × 483 × 345 mm

Packing Dimensions: 665 × 630 × 480 mm
